ACCL (ALMR) 600

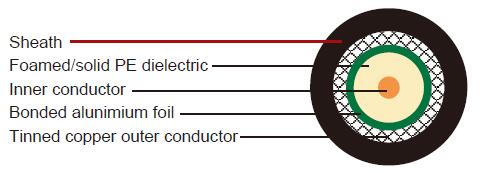

Construction
Inner conductor |
CCA(copper clad aluminium) |
Φ4.47 mm |
|---|---|---|
Dielectric |
Foam /Solid PE |
Φ11.56 mm |
Shield |
Bonded aluminium foil |
Φ11.71 mm |
Outer conductor |
Tinned copper braid |
Φ12.50 mm |
Sheath |
LSZH |
Φ14.99 mm |
Flame retardance |
IEC60332-3-22 |
|
Electrical & Mechanical Characteristics
Impedance |
50±3 Ohm |
|---|---|
Nominal capacitance |
76.8 pF/m |
Velocity of propagation |
87% |
Insulation resistance |
>5000 Mohm.Km |
Inner conductor resistance |
1.74 Ohm/Km |
Outer conductor resistance |
3.94 Ohm/Km |
Operating temperature range |
-40°C - +85 °C |
Min.bending radius |
75 mm |
Attenuation
| Frequency(MHz) | Attenuation (dB/100 ft) |
Max. Attenuation(dB/100ft) |
|---|---|---|
| 30 | 0.4 | 0.51 |
| 50 | 0.5 | 0.66 |
| 150 | 1.0 | 1.07 |
| 220 | 1.2 | 1.28 |
| 450 | 1.7 | 1.88 |
| 900 | 2.5 | 2.8 |
| 1500 | 3.3 | 3.6 |
| 1800 | 3.7 | 4.1 |
| 2000 | 3.9 | 4.3 |
| 2500 | 4.4 | 5.0 |
| 3000 | 4.8 | 5.5 |
| 5800 | 7.3 | 8.2 |
